Mastering Advanced Joins in Kusto Query Language (KQL): When Leftouter vs. Inner Fails You
Because Nothing Says "Romance" Like a Cardinality Explosion
Hey there, data wranglers and security sleuths! If you’ve ever stared at a KQL query in Microsoft Sentinel or Azure Data Explorer that’s churning out millions of rows when you expected a tidy handful—or worse, timing out because of some mysterious “cardinality explosion”—you’re not alone. Standard joins like inner and leftouter are your trusty sidekicks for basic table merges, but in the wild world of distributed systems, they can leave you high and dry. Today, we’re diving deep into advanced join mastery: leveraging lookup operators for multi-table efficiency, tackling non-equijoins with clever workarounds, and debugging those pesky cardinality mismatches. We’ll tie it all together with real-time threat hunting scenarios in Sentinel, where correlating events across tables can mean the difference between spotting a breach and missing it entirely.
Buckle up—let’s turn those join fails into wins.
The Join Basics: A Quick Refresher (And Why They Sometimes Suck)
KQL’s join operator is your go-to for combining tables, supporting flavors like inner (only matching rows), leftouter (all left rows, matches or nulls), and more exotic ones like leftsemi or rightanti. But here’s the rub: joins in distributed environments like Kusto are equi-joins only—meaning they rely on exact equality (==) in your on clause. Stray into inequalities (>, <), and you’re out of luck with a direct join.
Worse, joins can explode your result set due to data skew. Imagine joining a massive event log (left table: 10M rows) on a user ID that’s skewed—say, one VIP user generates 80% of the events. If the right table has even a loose match for that ID, boom: cartesian-product-like bloat, with row counts ballooning from thousands to billions. This isn’t just a performance killer; it can crash your query.
And don’t get me started on subtle bugs for SQL migrants: KQL is case-sensitive for column names, operators, and everything else. Type UserId instead of userid, and your join key ghosts you. Always double-check with | getschema to confirm casing.
When these basics fail—slow queries, mismatched rows, or timeouts—it’s time for advanced tools.
Level Up: Multi-Table Joins with the Lookup Operator
For scenarios screaming “fact table meets dimension table,” ditch join for the lookup operator. It’s like a lightweight leftouter join optimized for enriching large datasets with small reference tables (think: appending user roles to login events).
Why lookup over join?
No key duplication: Join keys appear once in output, slimming your schema.
Auto-broadcast: Assumes small right table (< tens of MB), broadcasting it efficiently—no manual hints needed.
Multi-table chaining: Pipe lookups sequentially for complex enrichments without nested subqueries.
Syntax is straightforward: LeftTable | lookup [kind=inner|leftouter] RightTable on KeyColumns.
Example: Enriching Sales Data Across Tables Suppose you have a Sales fact table and a Products dimension:
let Sales = datatable(SaleId:long, ProductId:string, Amount:real) [
1, “P001”, 100.0,
2, “P002”, 150.0,
3, “P003”, 200.0
];
let Products = datatable(ProductId:string, Category:string, Price:real) [
“P001”, “Electronics”, 99.99,
“P002”, “Books”, 14.99,
“P004”, “Clothing”, 50.0 // No match for P003
];
Sales
| lookup kind=leftouter Products on ProductId

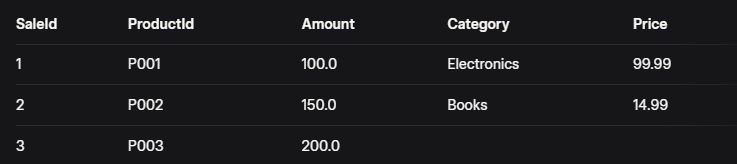

| project SaleId, ProductId, Amount, Category, PriceOutput:
Nulls for unmatched rows—perfect for multi-table pipelines. Chain another lookup for vendors, and you’ve got a lean, enriched view without bloat.
Pro tip: Pre-summarize your right table with | summarize to keep it tiny and avoid size limits.
Non-Equijoins: When Equality Isn’t Enough
KQL joins demand ==—no native support for >, <, or ranges. But fear not: workarounds like binning or post-join filters handle “near-matches” efficiently, especially for time-based correlations.
The Classic: Time-Window Joins In threat hunting, you often need “event A followed by B within 5 minutes?” Binning timestamps into discrete buckets turns this into an equi-join, then filter the window.
From the docs, here’s a tweaked example for session events:
let Events = datatable(SessionId:string, EventType:string, Timestamp:datetime) [
“S1”, “Login”, datetime(2025-10-08 10:00:00),
“S1”, “DataExfil”, datetime(2025-10-08 10:02:30),
“S2”, “Login”, datetime(2025-10-08 10:05:00),
“S2”, “Logout”, datetime(2025-10-08 10:10:00) // Outside window
];
let window = 5m;
let binSize = window / 2.0;
Events
| where EventType == “Login”
| project SessionId, Start=Timestamp, TimeBin = bin(Timestamp, binSize)
| join kind=inner (
Events
| where EventType == “DataExfil”
| project SessionId, End=Timestamp, TimeBin = range(bin(Timestamp - window, binSize), bin(Timestamp, binSize), binSize)
| mv-expand TimeBin to typeof(datetime)
) on SessionId, TimeBin
| where (End - Start) between (0m .. window)
| project SessionId, Start, End, Risk=”High - Quick Exfil!”This catches suspicious sessions without exploding cardinality—binning keeps the expanded right side manageable.
For numeric ranges (e.g., join on “price between 100 and 200”), generate a series with range and join on binned values, then filter.
Debugging Cardinality Mismatches: Don’t Let Skew Sneak Up
Your join returns 10x expected rows? Skew or fan-out. Here’s your debug toolkit:
Profile Counts: Pipe | count before/after joins. Use | summarize count() by JoinKey on both sides to spot skew (e.g., one key with 1M rows? Red flag).
Hint Strategies: Force broadcast for small rights: | join hint.strategy=broadcast RightTable on Key. For skew, try hint.shufflekey=Key to redistribute.
Pre-Aggregate: RightTable | summarize arg_max(Timestamp, *) by SkewedKey to dedupe before joining.
Case Traps: | getschema | project ColumnName—mismatches scream “case error!” Remember, KQL hates UserID != userid.
In distributed Kusto, skew hits hardest on hot partitions—monitor with | search * | summarize count() by bin(TimeGenerated, 1h) for temporal imbalances.
Sentinel Hunting: Threat Correlation in Action
Nothing tests joins like Sentinel’s event firehose. Let’s hunt real threats by correlating across tables.
Scenario 1: Anomalous Logins for High-Risk Users Join SigninLogs (login events) with IdentityInfo (user deets) to flag Red Team logins from odd IPs.
IdentityInfo
| where TimeGenerated > ago(1d)
| where Department == “RedTeam”
| join kind=inner (
SigninLogs
| where TimeGenerated > ago(1d)
| where ResultType != 0 // Failed logins
| summarize FailedAttempts = count() by AccountObjectId, IPAddress
) on AccountObjectId
| where FailedAttempts > 5
| extend RiskScore = FailedAttempts * 10 // Weight for hunting
| project AccountUpn, Department, IPAddress, FailedAttempts, RiskScoreThis inner join correlates user context with brute-force attempts—extend with lookup for IP geo-enrichment.
Scenario 2: Lateral Movement Detection Correlate SecurityEvent (process creations) with DeviceNetworkEvents for SMB scans (non-equi time window).
let window = 10m;
let binSize = window / 2;
SecurityEvent
| where TimeGenerated > ago(1h)
| where EventID == 4688 and ProcessCommandLine has “net use” // SMB recon
| project SessionId = Computer, Start=TimeGenerated, TimeBin=bin(TimeGenerated, binSize)
| join kind=inner (
DeviceNetworkEvents
| where TimeGenerated > ago(1h)
| where RemoteIP !startswith “10.” and Protocol == “SMB” // External SMB
| project SessionId=DeviceName, End=TimeGenerated,
TimeBin=range(bin(TimeGenerated-window, binSize), bin(TimeGenerated, binSize), binSize)
| mv-expand TimeBin
) on SessionId, TimeBin
| where (End - Start) between (0m .. window)
| summarize Connections = count() by SessionId, Start
| where Connections > 3
| extend Alert=”Potential Lateral Movement!”Binning handles the time non-equi, revealing scans followed by connections—prime for analytic rules.
Pitfalls to Dodge: Skew, Case, and the Human Factor
Skew Explosion: Always check key distributions. If skewed, aggregate or salt keys (add random suffix for even spread).
Case Sneaks: SQL folks, beware—| extend UserId = tostring(UserID) won’t help if casing mismatches in on. Use tolower() in joins if needed.
Distributed Gotchas: Joins shuffle data; large rights? Use hint.remote to push computation.
TLDR: Join Like a Pro
Mastering KQL joins means embracing lookup for efficiency, binning for non-equi, and relentless debugging for cardinality sanity. In Sentinel, these techniques turn raw logs into threat stories—faster detections, fewer false positives.
Next time your leftouter leaves you outer-ed, reach for these tools. Got a tricky query? Drop it in the comments—let’s hunt together.
Happy querying!
