Monitor Azure Open AI Deployments with Microsoft Sentinel
Monitor Azure Open AI Deployments with Microsoft Sentinel
Zeroing in
Defender for Cloud Apps (MCAS) has had the ability to track the public Open AI version for some time, but recently Azure’s version of Open AI activity is also now being captured by this Defender tool. This is a great step forward in monitoring Azure Open AI. You can still dig through AzureActivity and AzureDiagnostics tables to locate Azure Open AI activity, but the Defender for Cloud Apps ability will help shortcut exposing alerts - particularly if you have it connected to Microsoft Sentinel.
You can find some continuing work being done to expose Azure Open AI activity through KQL queries here: https://github.com/rod-trent/OpenAISecurity/tree/main/Security/Sentinel/KQL
This post walks through the idea of identifying the Azure Open AI deployments in your environment to create a Microsoft Sentinel Watchlist, and then utilizing the CloudAppEvents table to expose activity.
Finding Azure Open AI Deployments

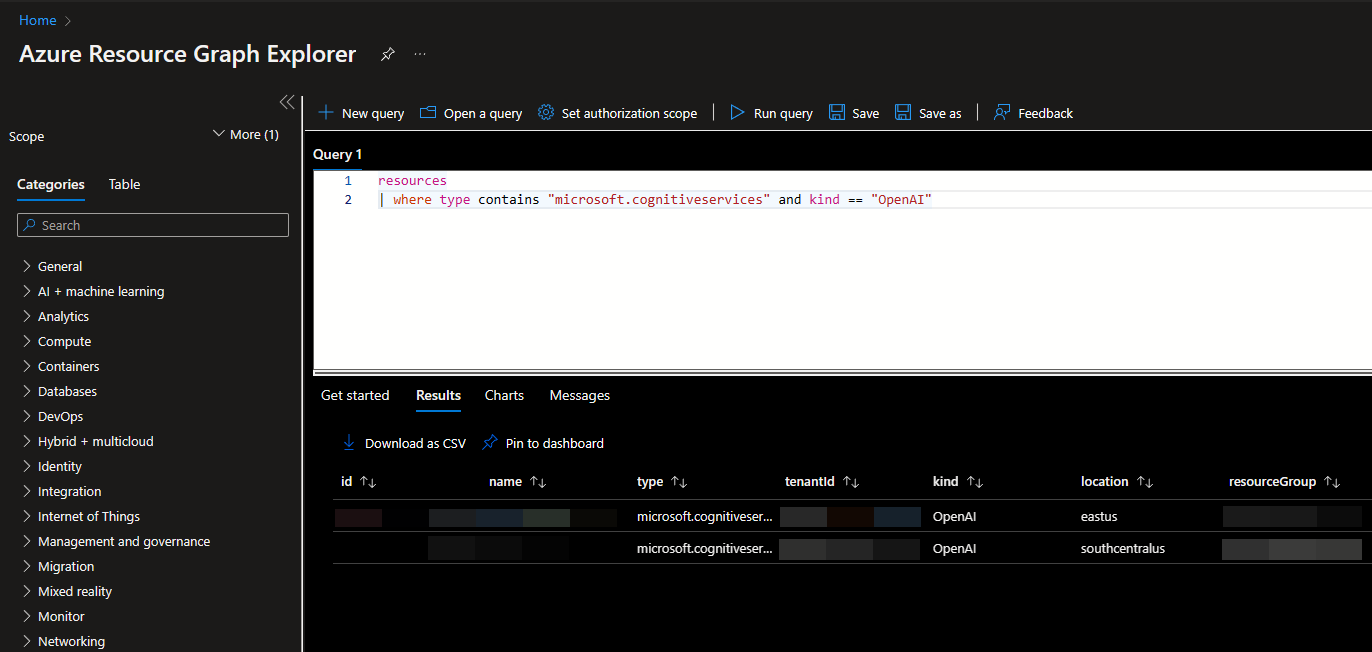

Use the following KQL query in Azure Resource Graph Explorer to locate all deployed Open AI instances so they can be added to a maintained Watchlist.
resources
| where type contains "microsoft.cognitiveservices" and kind == "OpenAI"
| project name, kind, location, resourceGroup
The most current version of this query will always be located here: https://github.com/rod-trent/OpenAISecurity/blob/main/Security/Sentinel/KQL/OpenAIInstances.kql
Watchlist Time
Create and maintain a Sentinel Watchlist with the deployed Azure Open AI instances. As shown, my Watchlist contains the instance name, the type, and the location (Azure region). The Resource Group is also contained in the results of the Azure Resource Graph Explorer query, so you might consider including that in your Watchlist, too (even though I didn’t).

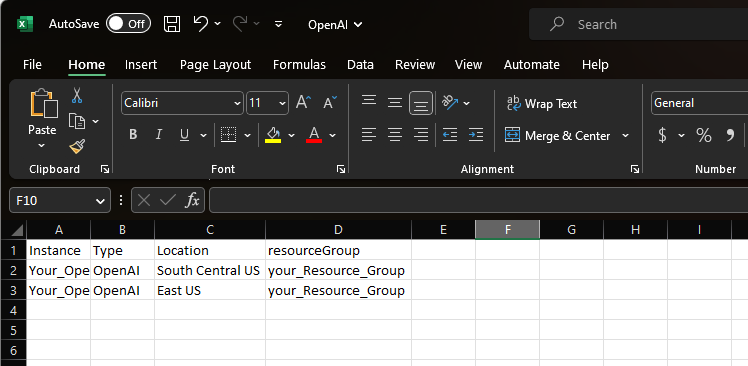

Here’s a csv file you can edit and import to get your Watchlist started.
https://github.com/rod-trent/OpenAISecurity/blob/main/Security/Sentinel/Watchlists/OpenAI.csv
The following is an example of a KQL query that can be run to show who is accessing the instance. This queries against the CloudAppEvents table which means you need to be utilizing Defender for Cloud Apps and have it connected to Microsoft Sentinel through the connector/solution. As you can see, I’ve named my Watchlist “AzureOpenAI”.
let OpenAI = _GetWatchlist("AzureOpenAI")
| project Instance;
CloudAppEvents
| where ObjectName in (OpenAI)
| project AccountDisplayName, IPAddress, ISP, City, CountryCodeThe most current version of this query will always be located here: https://github.com/rod-trent/OpenAISecurity/blob/main/Security/Sentinel/KQL/CloudAppEventsAzureOpenAIInstances.kql
Auto-updating the Watchlist
To ensure the Watchlist always contains the most up-to-date information on the Azure Open AI deployments in your environment, you should automate updating the Watchlist. I’ve put together a Logic App that will keep it updated.
The following image example is the workflow of the logic. It does the following:
Runs every day.
Uses the Azure Resource Graph Explorer query from before but this time as JSON (get the JSON formatted query here: https://github.com/rod-trent/OpenAISecurity/blob/main/Security/Sentinel/Watchlists/JSONQuery.json) to access the Graph API using a Managed Identity.
Parses the result of the query. I’ve uploaded the schema you can use for the payload here: https://github.com/rod-trent/OpenAISecurity/blob/main/Security/Sentinel/Watchlists/ParseJSONSchema.json
Connects to Microsoft Sentinel to update the Watchlist from the query results. I’ve uploaded the Watchlist Item fields format here: https://github.com/rod-trent/OpenAISecurity/blob/main/Security/Sentinel/Watchlists/WatchlistJSON.json
Next Steps
You can use the information here to generate a Microsoft Sentinel Analytics Rule to notify you when and if there’s Azure Open AI activity. But as you can imagine, as more and more organizations use Azure Open AI services, the amount of activity will increase and just a simple activity detection will need to be tuned to pick up very specific potentially nefarious activities.
I’ve started a reference of things I find in the data streams that seem important to monitor around Azure Open AI. You can find that information here:
https://github.com/rod-trent/OpenAISecurity/blob/main/Security/Sentinel/KQL/ThingstoMonitor.kql
Currently, it only contains things to monitor in the AzureDiagnostics table, but I’ll be adding AzureActivity and CloudAppEvents to it.
