Security Copilot Workbook
Building a central view for Security Copilot Activity

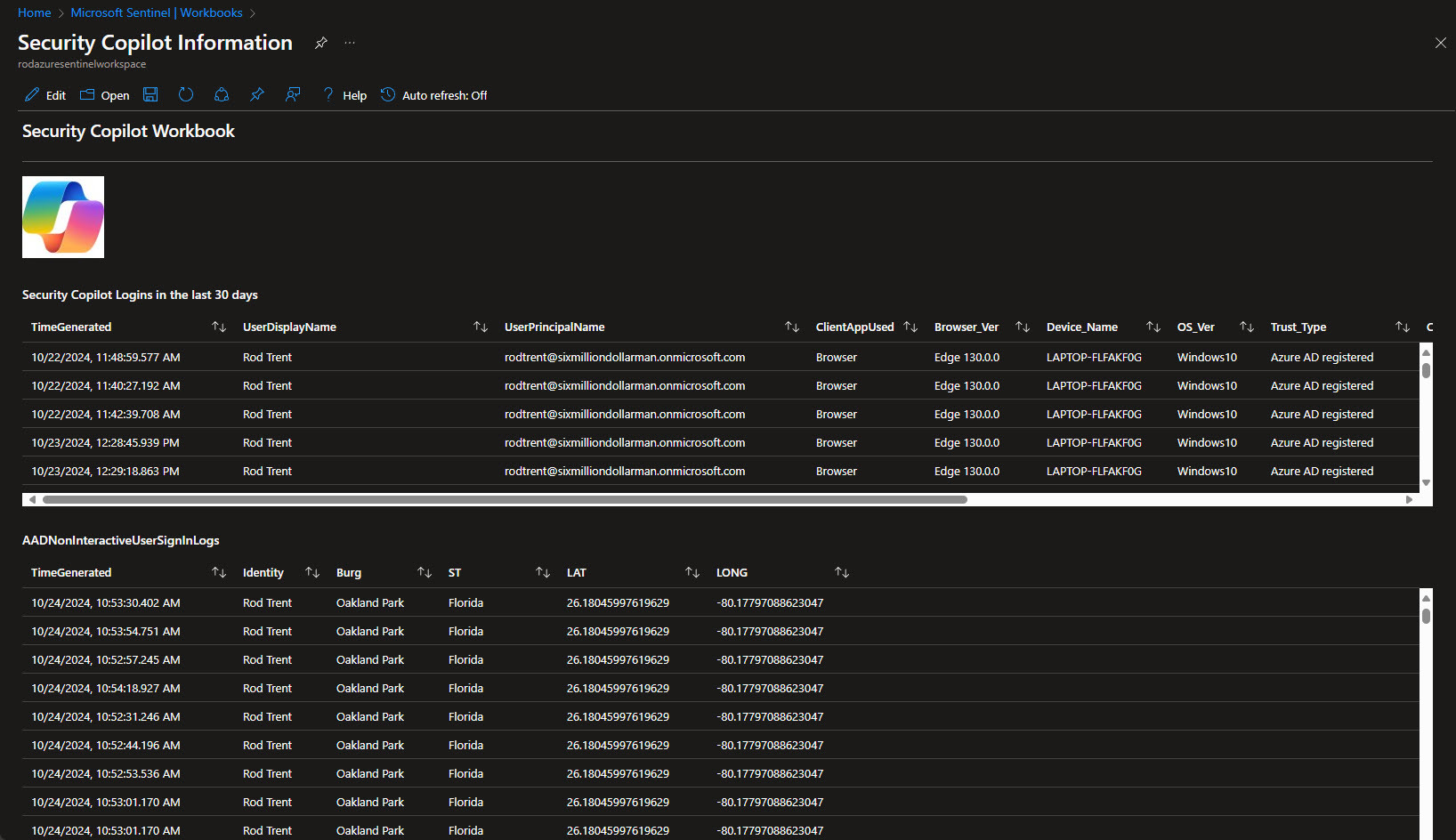

I recently started building an Azure Monitor Workbook to help centralize all the things that can be monitored for Security Copilot. I think I’m finally at a point where I want to share it with all of you, to get your help building it better, bigger, and more eye-pleasing.
This is an ongoing project and definitely bare bones right now. As new items to monitor are identified, I’ll add them. To be notified when things are updated, you’ll want to follow the GitHub repository.
GitHub Repo - Permanently located here: https://github.com/rod-trent/Copilot-for-Security/blob/main/Other/Workbook/SecurityCopilotWorkbook.json
What’s currently included…
Security Copilot Logins in the last 30 days
Sign-ins through AADNonInteractiveUserSignInLogs
Average of SCU processing time by instance
When SCUs have been created or changed
Average of SCU processing time
When SCUs have been created or changed
Identifies Unified console activity Security Copilot
Failed sign-ins
Failed MFA authentication against the Standalone experience
When the Intune extension for has been used
Successful Login to Security Copilot
Track SCU changes over time to set requirements baseline
What the JSON looks like…
{
"version": "Notebook/1.0",
"items": [
{
"type": 1,
"content": {
"json": "## Security Copilot Workbook\n---\n\n![Security Copilot](https://github.com/rod-trent/Copilot-for-Security/blob/main/Images/SCLogo.jpg?raw=true \"Security Copilot Logo\")"
},
"name": "text - 2"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "SigninLogs\r\n| where AppDisplayName == \"Medeina Portal\"\r\n| extend Browser_Ver = DeviceDetail.browser\r\n| extend Device_Name = DeviceDetail.displayName\r\n| extend OS_Ver = DeviceDetail.operatingSystem\r\n| extend Trust_Type = DeviceDetail.trustType\r\n| extend City_Loc = LocationDetails.city\r\n| extend Country_Loc = LocationDetails.countryOrRegion\r\n| extend State_Loc = LocationDetails.state\r\n| extend Lat = parse_json(tostring(LocationDetails.geoCoordinates)).latitude\r\n| extend Long = parse_json(tostring(LocationDetails.geoCoordinates)).longitude\r\n| project TimeGenerated, UserDisplayName, UserPrincipalName, ClientAppUsed, Browser_Ver, Device_Name, OS_Ver, Trust_Type, City_Loc, State_Loc, Country_Loc, Lat, Long",
"size": 1,
"title": "Security Copilot Logins in the last 30 days",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "table",
"tileSettings": {
"showBorder": false
},
"graphSettings": {
"type": 0
},
"mapSettings": {
"locInfo": "LatLong",
"latitude": "Lat",
"longitude": "Long",
"sizeSettings": "TimeGenerated",
"sizeAggregation": "Sum",
"legendAggregation": "Sum",
"itemColorSettings": null
}
},
"name": "query - 2"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AADNonInteractiveUserSignInLogs\r\n| where AppDisplayName == \"Medeina Service\"\r\n| extend Burg = parse_json(LocationDetails).city\r\n| extend ST = parse_json(LocationDetails).state\r\n| extend LAT = parse_json(tostring(parse_json(LocationDetails).geoCoordinates)).latitude\r\n| extend LONG = parse_json(tostring(parse_json(LocationDetails).geoCoordinates)).longitude\r\n| project TimeGenerated, Identity, Burg, ST, LAT, LONG",
"size": 0,
"title": "AADNonInteractiveUserSignInLogs",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 2"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AADNonInteractiveUserSignInLogs\r\n| where ResourceDisplayName has \"Medeina\"\r\n| project TimeGenerated, ResourceDisplayName, AppDisplayName, toint(ProcessingTimeInMs)\r\n| summarize Avg_Processing_Time_in_ms = avg(ProcessingTimeInMs) by ResourceDisplayName, AppDisplayName, TimeGenerated",
"size": 0,
"title": "Average of SCU processing time by instance",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 5"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AzureActivity\r\n| where OperationNameValue == \"MICROSOFT.SECURITYCOPILOT/CAPACITIES/WRITE\"\r\n| where ActivityStatusValue == \"Success\"\r\n| project Caller, CallerIpAddress, ResourceGroup",
"size": 0,
"title": "When SCUs have been created or changed",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 6"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AADNonInteractiveUserSignInLogs\r\n| where ResourceDisplayName has \"Medeina\"\r\n| project TimeGenerated, ResourceDisplayName, AppDisplayName, toint(ProcessingTimeInMs)\r\n| summarize Avg_Processing_Time_in_ms = avg(ProcessingTimeInMs) by ResourceDisplayName",
"size": 0,
"title": "Average of SCU processing time",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 4"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "CloudAppEvents\r\n| where ActionType == \"Write Capacities\"\r\n| project AccountDisplayName, City, CountryCode, ISP, ObjectName",
"size": 0,
"title": "When SCUs have been created or changed",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 8"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AzureActivity\r\n| where OperationNameValue == \"MICROSOFT.SECURITYCOPILOT/REGISTER/ACTION\"\r\n| project Caller, CallerIpAddress, ResourceGroup",
"size": 0,
"title": "Enabling Copilot for Security",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 7"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AADNonInteractiveUserSignInLogs \r\n| where AppDisplayName == \"Microsoft 365 Security and Compliance Center\" \r\n| where ResourceDisplayName has \"Medeina\" \r\n| extend city_ = tostring(parse_json(LocationDetails).city) \r\n| extend countryOrRegion_ = tostring(parse_json(LocationDetails).countryOrRegion) \r\n| extend latitude_ = tostring(parse_json(tostring(parse_json(LocationDetails).geoCoordinates)).latitude) \r\n| extend longitude_ = tostring(parse_json(tostring(parse_json(LocationDetails).geoCoordinates)).longitude) \r\n| extend state_ = tostring(parse_json(LocationDetails).state) \r\n| project TimeGenerated, Identity, UserType, UserPrincipalName, city_, countryOrRegion_, state_, latitude_, longitude_, ResourceDisplayName, AppDisplayName, ProcessingTimeInMs",
"size": 0,
"title": "Identifies Unified console activity Security Copilot",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 9"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "BehaviorAnalytics\r\n| where ActivityInsights.App == \"Medeina Portal\"\r\n| where ActivityInsights.Resource == \"Medeina Service\"\r\n| where ActivityType == \"FailedLogOn\"\r\n| project UserName, UserPrincipalName, ActionType, EventSource, SourceIPAddress, SourceIPLocation",
"size": 0,
"title": "Failed signins",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 10"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "SigninLogs \r\n| where AppDisplayName == \"Medeina Portal\" \r\n| where ResultType == \"50074\" \r\n| extend city = LocationDetails.city \r\n| extend state = LocationDetails.state \r\n| extend region = LocationDetails.countryOrRegion \r\n| extend latitude = parse_json(tostring(LocationDetails.geoCoordinates)).latitude \r\n| extend longitude = parse_json(tostring(LocationDetails.geoCoordinates)).longitude \r\n| project UserDisplayName, UserPrincipalName, UserType, city, state, region, latitude, longitude, AADTenantId",
"size": 0,
"title": "Failed MFA authentication against the Standalone experience",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 11"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AADNonInteractiveUserSignInLogs \r\n| where AppDisplayName == \"Microsoft Intune portal extension\" \r\n| extend city_ = tostring(parse_json(LocationDetails).city) \r\n| extend countryOrRegion_ = tostring(parse_json(LocationDetails).countryOrRegion) \r\n| extend latitude_ = tostring(parse_json(tostring(parse_json(LocationDetails).geoCoordinates)).latitude) \r\n| extend longitude_ = tostring(parse_json(tostring(parse_json(LocationDetails).geoCoordinates)).longitude) \r\n| extend state_ = tostring(parse_json(LocationDetails).state) \r\n| project TimeGenerated, Identity, UserType, UserPrincipalName, city_, countryOrRegion_, state_, latitude_, longitude_, ResourceDisplayName, AppDisplayName, ProcessingTimeInMs",
"size": 0,
"title": "When the Intune extension for has been used",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 12"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "IdentityLogonEvents\r\n| where AdditionalFields.[\"ARG.CLOUD_SERVICE\"] == \"Medeina Portal\"\r\n| extend User = AdditionalFields.[\"ACTOR.ALIAS\"]\r\n| project AccountDomain, User, ActionType, AccountUpn, IPAddress, Location, ISP, OSPlatform, DeviceType",
"size": 0,
"title": "Successful Login to Security Copilot",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 13"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AzureActivity\r\n| where TimeGenerated >= ago(30d)\r\n| where OperationNameValue == \"MICROSOFT.SECURITYCOPILOT/CAPACITIES/WRITE\" and ActivityStatusValue == \"Success\"\r\n| summarize Count = count() by ActivityStatusValue, TimeGenerated",
"size": 0,
"title": "Track SCU changes over time to set requirements baseline",
"timeContext": {
"durationMs": 2592000000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces",
"visualization": "table",
"tileSettings": {
"showBorder": false,
"titleContent": {
"columnMatch": "ActivityStatusValue",
"formatter": 1
},
"leftContent": {
"columnMatch": "Count",
"formatter": 12,
"formatOptions": {
"palette": "auto"
},
"numberFormat": {
"unit": 17,
"options": {
"maximumSignificantDigits": 3,
"maximumFractionDigits": 2
}
}
}
}
},
"name": "query - 14"
},
{
"type": 3,
"content": {
"version": "KqlItem/1.0",
"query": "AADNonInteractiveUserSignInLogs\r\n| where ResourceDisplayName has \"Medeina\"\r\n| where AppDisplayName == \"Threat Intelligence Portal\"\r\n| extend city_ = tostring(parse_json(LocationDetails).city) \r\n| extend countryOrRegion_ = tostring(parse_json(LocationDetails).countryOrRegion) \r\n| extend latitude_ = tostring(parse_json(tostring(parse_json(LocationDetails).geoCoordinates)).latitude) \r\n| extend longitude_ = tostring(parse_json(tostring(parse_json(LocationDetails).geoCoordinates)).longitude) \r\n| extend state_ = tostring(parse_json(LocationDetails).state) \r\n| project TimeGenerated, Identity, UserType, UserPrincipalName, city_, countryOrRegion_, state_, latitude_, longitude_, ResourceDisplayName, AppDisplayName, ProcessingTimeInMs",
"size": 0,
"title": "Who accessed the Defender Threat Intelligence Portal",
"timeContext": {
"durationMs": 86400000
},
"queryType": 0,
"resourceType": "microsoft.operationalinsights/workspaces"
},
"name": "query - 3"
}
],
"fromTemplateId": "sentinel-UserWorkbook",
"$schema": "https://github.com/Microsoft/Application-Insights-Workbooks/blob/master/schema/workbook.json"
}[Want to discuss this further? Hit me up on Twitter or LinkedIn]
