Understanding the KQL mv-expand Operator

Efficiently Handling Multi-value Fields in KQL

KQL, or Kusto Query Language, is a powerful tool for querying and analyzing data in Azure Data Explorer and other Microsoft data platforms. One of its versatile operators is mv-expand, which allows users to expand multi-value fields into separate rows. While this operator can be highly effective in certain scenarios, it requires careful handling to avoid unexpected results.

What is the mv-expand Operator?

KQL's mv-expand operator is designed to handle fields that contain arrays or multi-value data. When applied, it transforms each element in these multi-value fields into its own row. This operation is useful when individual analysis or manipulation of array elements is required.

For example, consider the following dataset:

• User: John

• Visited Pages: ["Home", "Products", "Contact"]

• User: Alice

• Visited Pages: ["About", "Careers"]

Using mv-expand on the Visited Pages field would result in:

• John, Home

• John, Products

• John, Contact

• Alice, About

• Alice, Careers

This transformation facilitates detailed analysis, such as determining the popularity of pages visited by users.

Benefits of the mv-expand Operator

1. Simplifies Data Exploration

When working with multi-value fields, mv-expand simplifies queries by presenting data in a tabular format that is more intuitive and easier to analyze.

2. Enables Element-specific Aggregations

By breaking down arrays into individual rows, users can perform aggregations or calculations specific to each element, such as counting occurrences or calculating averages.

3. Enhances Visualization Compatibility

Data expanded using mv-expand is often better suited for visualization tools that require a flat structure for charts and graphs.

Challenges and Potential Pitfalls

Despite its advantages, the mv-expand operator can lead to unexpected results if not used with proper understanding.

1. Data Duplication

Expanding multi-value fields may inadvertently duplicate data from other columns. For example, if a field contains user-related metadata alongside an array, expanding the array creates duplicate rows that repeat the metadata.

2. Performance Concerns

If applied to large datasets or high-cardinality multi-value fields, mv-expand can significantly increase the number of rows, leading to performance issues.

3. Loss of Context

Depending on the structure of your data, expanding fields may obscure relationships between elements or lose contextual information crucial for the analysis.

Best Practices for Using mv-expand

1. Use Filters Before Expansion

To mitigate performance issues, filter your dataset to include only relevant rows before applying mv-expand. This reduces the size of the resulting table.

2. Combine with Summarize or Other Aggregations

After expanding the multi-value fields, consider applying aggregation operators like summarize to consolidate data and prevent row explosion.

3. Validate Results

Always inspect the output after using mv-expand. Verify that the transformation preserves meaningful relationships and doesn't yield unintended duplications.

4. Document Queries

Clearly document your queries that use mv-expand to ensure future users understand its purpose and behavior.

Examples of mv-expand Usage

Consider this example dataset:

• ID: 1

• Tags: ["Azure", "Cloud", "Data"]

• ID: 2

• Tags: ["AI", "Machine Learning"]

• ID: 3

• Tags: ["Big Data", "Analytics"]

Applying mv-expand to Tags will flatten the data:

• 1, Azure

• 1, Cloud

• 1, Data

• 2, AI

• 2, Machine Learning

• 3, Big Data

• 3, Analytics

This allows further analysis, such as counting tag occurrences:

datatable(ID: int, Tags: dynamic)
[
    1, dynamic(["Azure", "Cloud", "Data"]),
    2, dynamic(["AI", "Machine Learning"]),
    3, dynamic(["Big Data", "Analytics"])
]
| mv-expand Tags

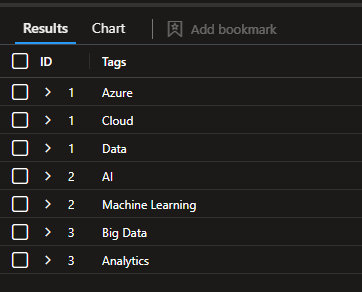

Result:

TLDR

The mv-expand operator in KQL is a powerful tool for working with multi-value fields, providing enhanced flexibility in data analysis. However, it requires careful handling to avoid issues like data duplication and row explosion. By following best practices and validating results, you can use mv-expand effectively to unlock deeper insights and improve decision-making in your data workflows.
