Using a non-Sentinel Log Analytics Workspace with Copilot for Security

Non-Sentinel customers? How is that possible?

This tidbit is for those that are not Microsoft Sentinel customers (they really do exist) but would still like to take advantage of the many logs provided in Azure to expand Copilot for Security’s knowledge.

In the past, you’ve seen me develop and detail various Copilot for Security plugins that use the Microsoft Sentinel Log Analytics workspace (LAW) to process KQL queries. You can find all of those in the Plugins directory of my GitHub repo: https://github.com/rod-trent/Copilot-for-Security/tree/main/Plugins

It’s easy for me to just sidecar the Sentinel LAW because I maintain a big demo environment. But for those that don’t maintain a Sentinel environment here’s the process of using a separate LAW.

1- Create a New LAW

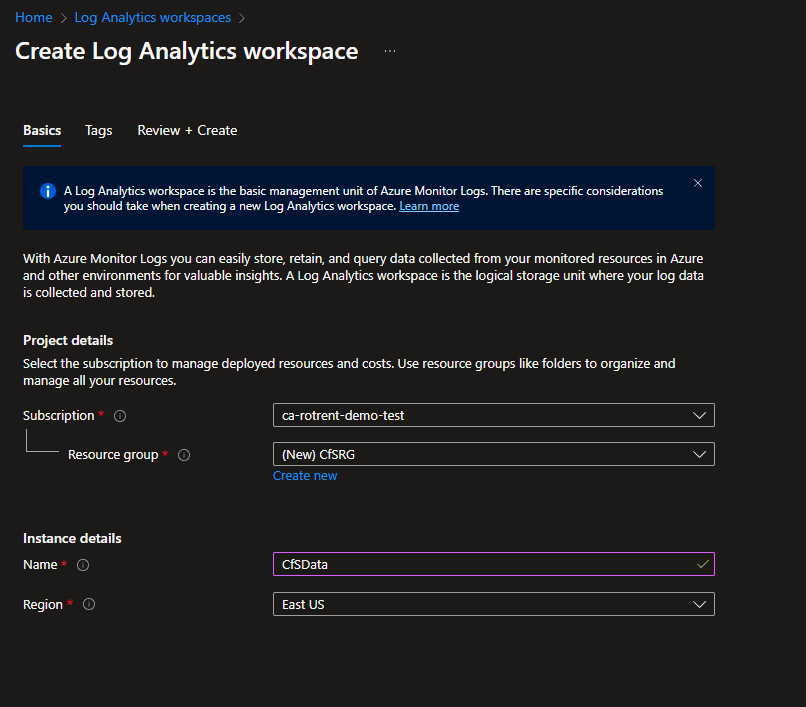

In the Azure portal, create a new Log Analytics workspace. This is the location where you will store tables of rows and columns of data that can be queried using KQL. Take note of the Resource Group and instance Name. You’ll need this to create your own Copilot for Security plugin.

Note that when you provision a new LAW, the following tables (in the image) are available by default.

2 - Connect Logs

Each service in Azure has a Monitoring option called “Diagnostic Settings.” Locate the service you want to use to connect its logs to the new LAW and locate the Diagnostics Settings option.

In my example below, I’m connecting the Diagnostic Setting for Entra ID which includes tons of worthwhile log files.

Checkmark the logs you want to connect and then in the Destination Details choose Sent to Log Analytics workspace and supply the name of the LAW you created earlier.

Be patient. It can take up to 30 minutes after creating the Diagnostic Setting for the tables for the selected service to show up in the new LAW.

3 - Creating the Custom Plugin

You can use the following as a template to create your own Copilot for Security custom plugin. For your own plugin, though, just replace all the items in bold with your information, noting that

Descriptor:
  Name: StandaloneLAW
  DisplayName: Standalone-LAW
  Description: Querying a standalone Log Analytics Workspace

SkillGroups:
  - Format: KQL
    Skills:
      - Name: StandaloneLAW
        DisplayName: Standalone-LAW
        Description: Querying a standalone Log Analytics Workspace
        Settings:
          TenantId: <your_tenant_ID>
          SubscriptionId: <your_subscription_ID>
          ResourceGroupName: <your_RG_name>
          WorkspaceName: <your_WS_name>
          Template: |-
            AADNonInteractiveUserSignInLogs | where TimeGenerated > ago(24h) | where ResourceDisplayName == "Microsoft Graph" and AppDisplayName == "Medeina Service" | extend city_ = tostring(parse_json(LocationDetails).city) | extend countryOrRegion_ = tostring(parse_json(LocationDetails).countryOrRegion) | extend state_ = tostring(parse_json(LocationDetails).state) | project TimeGenerated, OperationName, Category, Identity, AppDisplayName, city_, countryOrRegion_, state_

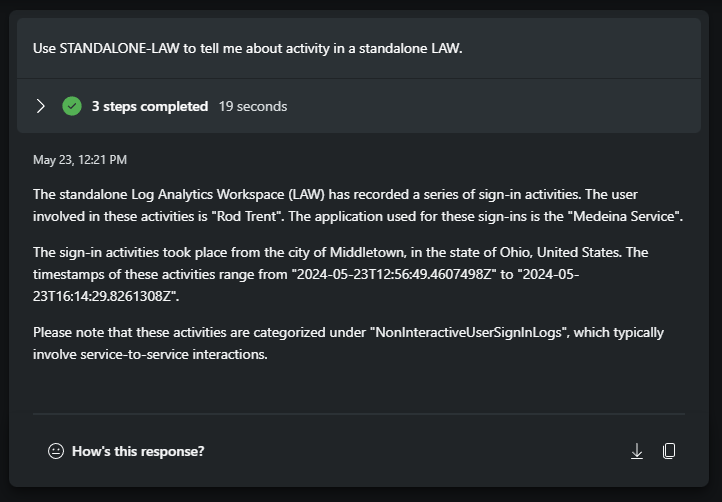

An example of the output…

How is this template different the ones I created that uses the Microsoft Sentinel LAW?

Compare the following with the template above and look what is missing…

          Target: Sentinel
          TenantId: <your_tenant_ID>
          SubscriptionId: <your_subscription_ID>
          ResourceGroupName: <your_RG_name>
          WorkspaceName: <your_WS_name>

The Standalone LAW template is also available here: https://github.com/rod-trent/Copilot-for-Security/blob/main/Plugins/Standalone_LAW_Template.yaml

To install this in your own Copilot for Security instance, see: Add custom plugins

---
